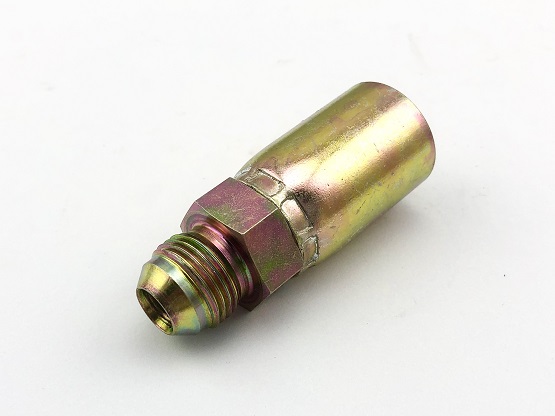

37°H公凸-高壓夾頭
SAE JIC 37°
Commonly referred to as JIC
fittings, these metal-to-metal
sealing type fittings have a 37°
flare (sealing surface angle) and
straight United National Fine
Threads (UNF).
Standard: ISO 12151-5,
ISO8434-2, SAE J516
規格表
| 編 號 | 牙 | HOSE BORE | H |
| A1302S2-0404 | 7/16"-20un | 1/4" | 14 |
| A1302S2-0604 | 9/16"-18un | 1/4" | 19 |
| A1302S2-0605 | 9/16"-18un | 5/16" | 19 |
| A1302S2-0606 | 9/16"-18un | 3/8" | 19 |
| A1302S2-0806 | 1/2"-16un | 3/8" | 19 |
| A1302S2-0808 | 1/2"-16un | 1/2" | 22 |
| A1302S2-1008 | 7/8"-14un | 1/2" | 23 |
| A1302S2-1010 | 7/8"-14un | 5/8" | 27 |
| A1302S2-1012 | 7/8"-14un | 3/4" | 27 |
| A1302S2-1210 | １1/16"-12un | 5/8" | 27 |
| A1302S2-1212 | １1/16"-12un | 3/4" | 27 |
| A1302S2-1612 | １5/16"-12un | 3/4" | 35 |
| A1302S2-1616 | １5/16"-12un | １" | 35 |
| A1302S2-2020 | １5/8"-12un | １1/4" | 50 |
| A1302S2-2424 | １7/8"-12un | １1/2" | 57 |
